Item Description

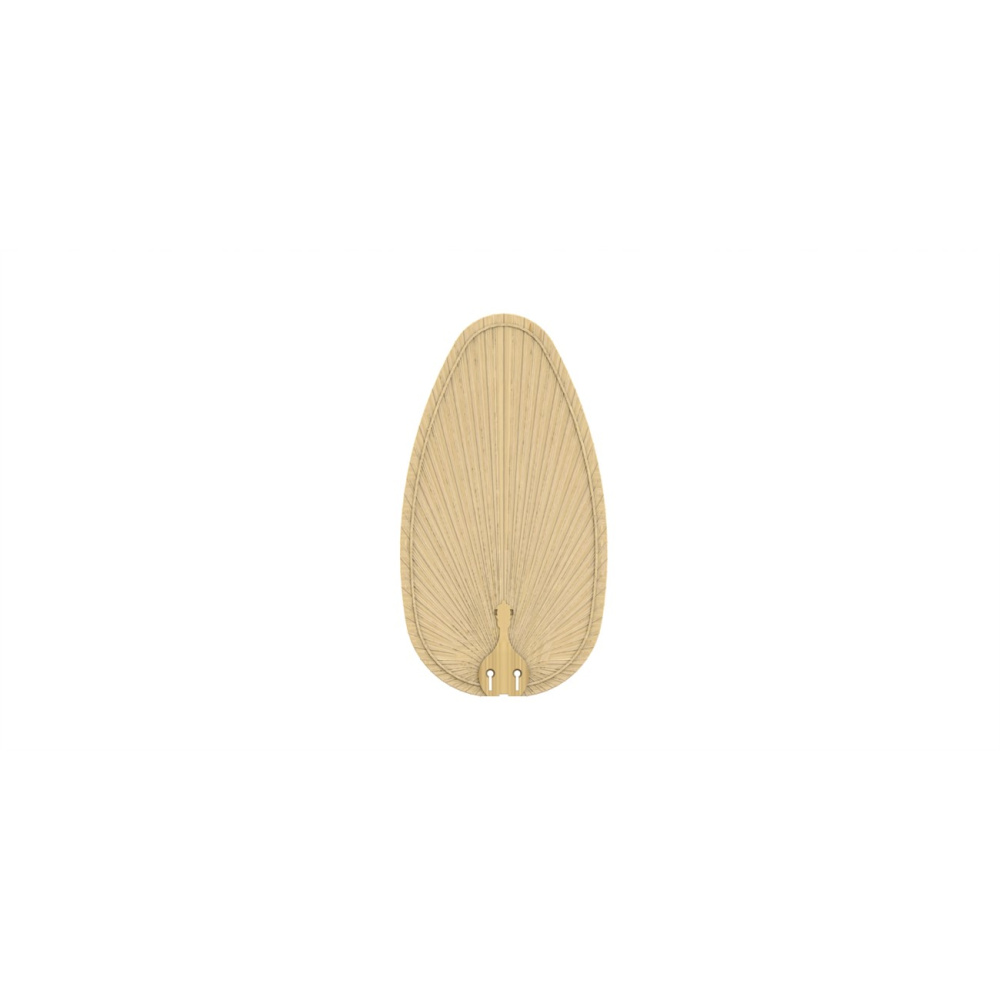

The mix and match blade sets are hand crafted and vary based on item number and are specific to fan models. These Islander DC composite blades are available in sets of 5, 22 inches in length with a 52 inch sweep. There are various blade finishes to choose to make the perfect selection. Wet Rated for indoor or outdoor use.

• Item ID: 71DTM
• Width: 12.10
• Height: 0.39
• Category: Blades
• Finish: Matte White
• Option: Outdoor
• Family: Islander DC
• Blade Finish: Matte White
• Blade Pitch: 14
• Harmonized Codes: 8414.90.1040
• Ship Carton Height: 2.76
• Ship Carton Length: 22.83
• Ship Carton Width: 12.6
• Ship Weight: 7
• Sold By: Each
• Warranty: 1 Year
• Weight: 4.97
• COMPATIBILITY: For use with Islander ceiling fans by Fanimation
• DIMENSIONS: 22 inches length x 12 inches wide x 22 inches height
• FINISH: Matte White
• LOCATION: Wet Rated for use in indoor and outdoor spaces, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches
• MATERIAL: Made from durable, light-weight Composite
• OPTIONS: Available in multiple finishes
• SIZE: 52-inch blade sweep with 14 degree blade pitch
• WARRANTY: 1-Year
• WEIGHT: Set of 5 blades 4.75 lbs. - each blade weighs 0.95 lbs.
• Blade Finish Method: Painted
• Blade Material: Composite
• Blade Reversible: No
• Blade Sweep: 52
• Carton Cubic Feet: 0.5191
• Case Height: 12.4
• Case Length: 23.62
• Case Quantity: 4
• Case Weight Pounds: 26.27
• Case Width: 13.19
• CEC Uploaded: No
• Country of Origin: China
• DOE-FTC Uploaded: No
• Exempt from DOE Procedure: Yes
• Indoor: Yes
• IP Rating: IP21
• Location Rating: Wet Rated
• Number of Blades: 5
• Outdoor: Yes
• Regulated Product: No
• Standard Category: Fan Accessories
• Standard Subcategory: Fan Blades
• Standard Option: Outdoor, Wet Rated

Item Description
The 5-blade Islander by Fanimation in the Brushed Satin Brass finish allows you to create an oasis of calm within your home. The choice of multiple tropically inspired blade styles (sold separately) will help transform living rooms, bedrooms, and sunrooms into exotic yet casual settings. The blade sweep ranges from 68 to 80 inches, depending on the style selected. Best of all, the Energy Star-rated Islander consumes 70 percent less energy than a conventional ceiling fan thanks to its DC-powered motor. Conserving energy never felt this good! The streamlined housing in the Brushed Satin Brass finish seamlessly fits in with many décors. With the flexibility of 6 forward and 6 reverse speeds, you can choose to relax under a gentle breeze, experience some major cooling effects during a heat wave and everything in between. Sloped ceilings are no problem for the Islander; it can be installed in ceilings with up to a 30 degree slope. A remote control is included (an optional wall control can be ordered). All Fanimation motors are protected by a limited lifetime warranty.

• Item ID: 71ER9
• Width: 52.00
• Height: 16.26
• Category: Fan-Multi
• Finish: Brushed Satin Brass
• Option: Energy Efficient, Outdoor
• Family: Islander DC
• Voltage: 120 V
• Air Flow CFM: 5141
• Air Flow Efficiency: 154
• Blade Pitch: 20
• Canopy: 6.5 Dia x 2.58 H
• Harmonized Codes: 8414.50.3000
• Light Kit Included: No
• Motor Size: DC125NS
• Motor Type: DC
• Ship Carton Height: 8.54
• Ship Carton Length: 21.97
• Ship Carton Width: 10.08
• Ship Weight: 15.18
• Sold By: Each
• Warranty: 1 Year
• Weight: 15.18
• CONTROL: Includes a TR360 hand-held remote
• FINISH: Brushed Satin Brass
• INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 6-in length downrod - optional downrods are available in lengths up to 72 inches to adjust the fans height to 7ft - 9ft from the floor, ensuring maximum airflow
• LIGHTING: Light kits not available
• LOCATION: This ceiling fan is Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity
• POWER: The 6-speed, quiet and energy efficient DC motor can provide airflow up to 5,141 CFM
• SAVINGS: Features a reversible motor, allowing you to switch the direction of your fan's rotation and create energy savings
• TECHNOLOGY: Includes fanSync Wi-Fi connectivity, allowing the fan to pair with most smart home devices
• WARRANTY: 1-Year
• Airflow Efficiency Low: 407
• Airflow Efficiency Medium: 240
• Airflow Efficiency Medium High: 181
• Airflow Efficiency Medium Low: 323
• Airflow Efficiency Mini: 635
• Avg Airflow Efficiency: 173
• Avg CFM Energy: 3764
• Avg Energy Use: 22
• Avg Estimated Yearly Energy Cost: 6
• Avg Estimated Yearly Energy Cost on HIGH: 9
• Cap Included: No
• Carton Cubic Feet: 1.095
• Case Height: 8.54
• Case Length: 21.97
• Case Quantity: 1
• Case Weight Pounds: 16.74
• Case Width: 10.08
• CEC Uploaded: Yes
• Ceiling To Blade Edge: BPP1: 17.61; BPP4: 15.84
• Ceiling To Bottom (No Light Kit): 16.26
• CFM Low: 2733
• CFM Medium: 3952
• CFM Medium High: 4690
• CFM Medium Low: 3368
• CFM Mini: 2205
• Country of Origin: China
• Current Draw High: 0.49
• Current Draw Low: 0.1
• Current Draw Medium: 0.23
• Current Draw Medium High: 0.37
• Current Draw Medium Low: 0.17
• Current Draw Mini: 0.06
• DOE Classification: LSSD
• DOE-FTC Uploaded: Yes
• Downrod Length: 6
• Energy Efficient: Yes
• Exempt from DOE Procedure: No
• Fan Energy Star 4: No
• Housing Diameter: 8.17
• Included Control: TR360
• Included Control Type: Handheld
• Indoor: Yes
• Leadwire: 14 motor & 15 light
• Location Rating: Damp Rated
• Max Ceiling Slope: 27
• Motor Finish Method Type: Plated
• Motor Reversible: Yes
• Number of Blades: 5
• Number Of Speeds: 6
• Outdoor: Yes
• Regulated Product: Yes
• Reverse Switch Location: Control
• RPM High: 119
• RPM Low: 64
• RPM Medium: 93
• RPM Medium High: 105
• RPM Medium Low: 78
• RPM Mini: 50
• Safety Rating: UL Approved
• Voltage Cycles: 60 Hz
• Watts High: 33
• Watts Low: 7
• Watts Medium: 16
• Watts Medium High: 26
• Watts Medium Low: 10
• Watts Mini: 3
• Standard Category: Fans
• Standard Subcategory: Outdoor Fans
• Standard Option: Energy Efficient, Outdoor, Damp Rated

Item Description
The mix and match blade sets are hand crafted and vary based on item number and are specific to fan models. These Islander DC composite blades are available in sets of 5, 22 inches in length with a 52 inch sweep. There are various blade finishes to choose to make the perfect selection. Wet Rated for indoor or outdoor use.

• Item ID: 71DTH
• Width: 22.20
• Height: 0.39
• Category: Blades
• Finish: Koa
• Option: Outdoor
• Family: Islander DC
• Blade Finish: Koa
• Blade Pitch: 14
• Harmonized Codes: 8414.90.1040
• Ship Carton Height: 2.76
• Ship Carton Length: 22.83
• Ship Carton Width: 22.83
• Ship Weight: 12
• Sold By: Each
• Warranty: 1 Year
• Weight: 7.37
• COMPATIBILITY: For use with Islander ceiling fans by Fanimation
• DIMENSIONS: 22 inches length x 22 inches wide x 22 inches height
• FINISH: Koa
• LOCATION: Wet Rated for use in indoor and outdoor spaces, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches
• MATERIAL: Made from durable, light-weight Composite
• OPTIONS: Available in multiple finishes
• SIZE: 52-inch blade sweep with 14 degree blade pitch
• WARRANTY: 1-Year
• WEIGHT: Set of 5 blades 9.25 lbs. - each blade weighs 1.85 lbs.
• Blade Finish Method: Painted
• Blade Material: Composite
• Blade Reversible: No
• Blade Sweep: 52
• Carton Cubic Feet: 0.9184
• Case Height: 12.99
• Case Length: 23.62
• Case Quantity: 4
• Case Weight Pounds: 48.84
• Case Width: 23.43
• CEC Uploaded: No
• Country of Origin: China
• DOE-FTC Uploaded: No
• Exempt from DOE Procedure: Yes
• Indoor: Yes
• IP Rating: IP21
• Location Rating: Wet Rated
• Number of Blades: 5
• Outdoor: Yes
• Regulated Product: No
• Standard Category: Fan Accessories
• Standard Subcategory: Fan Blades
• Standard Option: Outdoor, Wet Rated
